Table of contents:
Essential Tools and Preparation for Freightliner Harness Replacement
Step-by-Step Instructions for Removing the Old Wire Harness
Tips for Properly Installing Your New Freightliner Wiring Harness
Common Mistakes to Avoid During DIY Freightliner Harness Installation
Essential Tools and Preparation for Freightliner Harness Replacement
Before diving into the installation process, it's vital to assemble the right tools and prepare your workspace. You'll need a set of socket wrenches, wire cutters, pliers, electrical tape, and a multimeter. A wire harness online shop may offer additional specialized tools that can simplify the process. Ensure you have a clean, well-lit area to work in, preferably indoors to protect against the elements. It's also wise to disconnect the battery and allow the engine to cool completely before starting. Familiarize yourself with the vehicle's electrical system using the Freightliner manual, and consider printing out the color-coded wiring diagram that comes with your new harness. Lastly, organize your workspace to keep track of all connectors and wires as you remove them, which will make reassembly much smoother.
Step-by-Step Instructions for Removing the Old Wire Harness
Begin by carefully disconnecting all electrical connections to the old harness. Take photos or label each connection to ensure correct reassembly later. Gently remove any zip ties or clips securing the harness to the vehicle's frame. As you work through the removal process, pay close attention to how the harness is routed through the engine bay and along the chassis. This wire harness for sale is designed as a direct OEM replacement, so it should follow the same path as the original. Once all connections are free, carefully extract the old harness, taking note of any wear points or areas where additional protection might be beneficial. If you encounter any corroded or damaged connectors during removal, now is the perfect time to address these issues before installing the new harness.
Tips for Properly Installing Your New Freightliner Wiring Harness

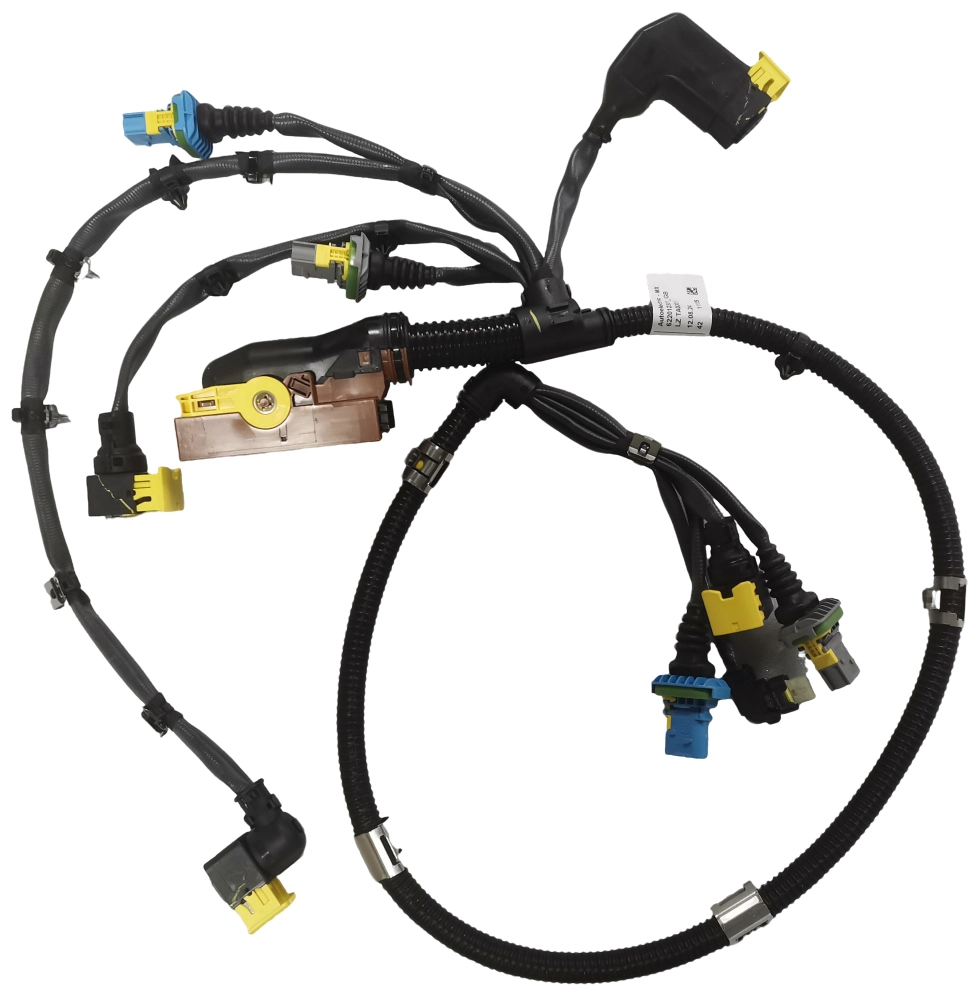

When you're ready to install your new harness, start by laying it out and comparing it to the old one to ensure all connections match. The color-coded and numbered wiring of the A9645406336 harness makes this process much easier. Begin routing the new harness following the same path as the old one, securing it with the provided clips or new zip ties. Take advantage of the wire harness online shop's support resources, such as QR-coded installation guides, to ensure proper placement. Pay special attention to areas near moving parts or heat sources, using the harness's extreme-duty protection features to your advantage. As you connect each wire, double-check the color codes and numbers to prevent any mix-ups. The gold-plated terminals should provide a secure connection, but ensure each one clicks firmly into place.
Common Mistakes to Avoid During DIY Freightliner Harness Installation
One of the most common errors is rushing through the installation without proper planning. Take your time and refer to your documentation frequently. Another mistake is neglecting to test connections as you go. Use your multimeter to verify continuity and proper voltage at each major connection point. Some DIYers overlook the importance of proper grounding – ensure all ground connections are clean and secure. Be cautious not to overtighten zip ties or mounting hardware, as this can damage the new harness. If you encounter any difficulties, don't hesitate to consult the technical support provided by the wire harness online shop. Remember, forcing connections or making modifications to the harness can void your warranty and potentially cause electrical issues down the road. Lastly, after installation, perform a thorough system check before taking your Freightliner back on the road.
The successful installation of your new Freightliner wiring harness marks a significant upgrade to your vehicle's electrical system. By following this guide and leveraging the features of the A9645406336 Premium Freightliner Wiring Harness, you've not only saved on costs but also enhanced your truck's reliability. The extreme-duty protection and rigorous testing of this wire harness for sale ensure long-lasting performance in demanding conditions. Remember to take advantage of the lifetime technical support and access to the Freightliner wiring portal for any future needs. With your newly installed harness, you can hit the road with confidence, knowing your Freightliner is equipped with a top-quality electrical system designed to withstand the rigors of long-haul trucking and fleet operations.
